Nokia 6124 Classic disassembly

Nokia 6124 Classic disassembly
Tools required: Torx 6 screwdriver, plastic tool such as a credit card or guitar plectrum

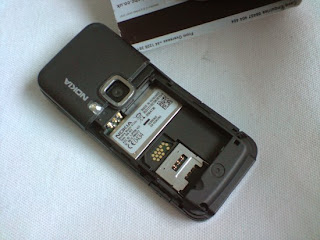

First remove the battery cover, battery, sim and memory card.

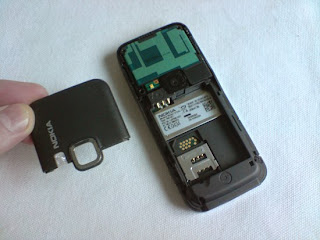

Run your plastic tool around the edge of the join of the camera surround to unclip it.

With the camera surround removed your phone will now look like below.

Slide your plastic tool underneath the keypad to unclip it.

  • Now lift away the keypad. It'll come away without much force.

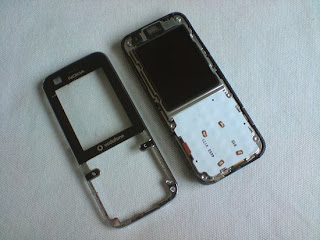

  • Run your plastic tool around the join of the front cover to unclip it.

  • Your phone will now look like below. Remove the six screws you can see.
  • Lift the main body of the phone away from its chassis. The metal LCD frame should be loose. Pull this towards you.

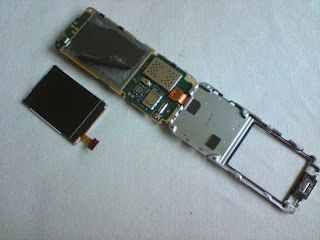

    A ribbon, circled, connects the LCD to the circuit board. This attaches like a plug and socket. Simply lift it up to unplug.

    You can now remove the LCD and replace with new. Reverse the whole procedure for reassembly.
