Nokia 6210 disassembly

Nokia 6210 disassembly
Tools required: Torx 6 screwdriver, plastic tool such as a credit card or guitar plectrum

Remove your battery and sim card. Remove the four screws you can see.

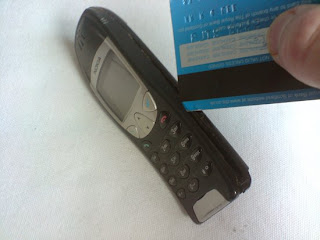

Now run your plastic tool around the join of the front and back cover to release them.

The battery compartment should now be separated from the rest of the phone. Next remove the circled screw and the antenna will come loose and you'll be able to remove the circuit board.

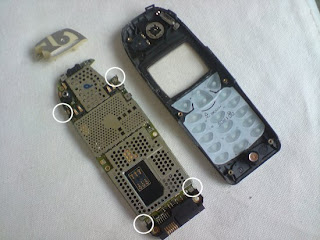

Your phone should now look like below. Four clips (circled) hold the LCD screen and frame to the circuit board. Release these to release the LCD screen.

You should now have the LCD screen removed. Reverse the whole procedure for reassembly.
