Nokia 2310 disassembly

Nokia 2310 disassembly
Tools required: Torx 6 screwdriver

First remove the battery cover, battery and sim card. Turn the phone over and remove the front cover. It just pulls off.

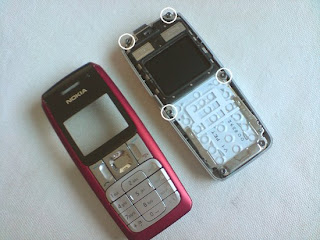

Your phone should now look like below. Remove the four circled screws.

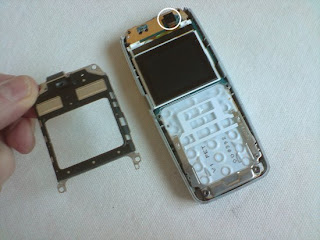

Lift the LCD frame away. Now disconnect the circled connector. It attaches like a plug and socket. Simply lift it up, away from the main body of the phone, and it will unplug.

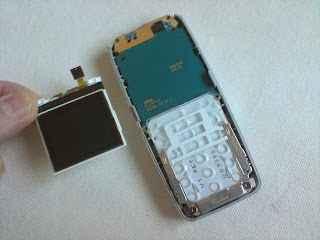

The LCD screen should now be loose and can be replaced. Reverse the whole procedure for reassembly.
