Nokia 2600 Classic disassembly

Nokia 2600 Classic disassembly
Tools required: Torx 5 screwdriver

First remove the battery cover, battery and sim. Two clips hold the front cover in place (circled) so release them.

You should now have the front cover removed. Remove the screws you can see.

Flip the frame from left to right but take note that it is still attached by a ribbon. The release this, flick the black latch (circled) up then pull the metal frame away from the phone.

The circuit board will still be attached at the bottom of the phone so move it to one side slightly to access the ribbon connector from the LCD screen. The connector attaches like a plug and socket. Lift the connector up, away from the phone to unplug it. The LCD screen will now be free.

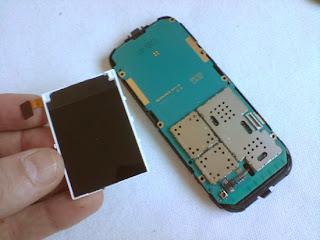

You should now have the LCD screen removed. Reverse the procedure for reassembly.
