Installing MacBook Unibody DC-In Board

Installing MacBook Unibody DC-In Board

No power to the laptop? Replace the DC-in Board.

Tools used in this guide : Phillips #00 Screwdriver , Spudger

Parts relevant to this guide: MacBook Unibody Magsafe DC-in Board

Step 1 — Access Door

With the case closed, place the Unibody top-side down on a flat surface.

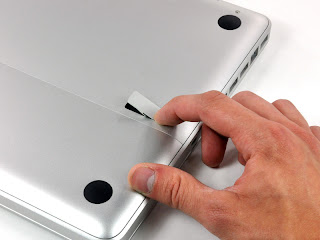

Depress the grooved side of the access door release latch enough to grab the free end. Lift the release latch until it is vertical.

Step 2

The access door should now be raised enough to lift it up and out of the Unibody.

Step 3 — Battery

Be sure the access door release latch is vertical before proceeding.

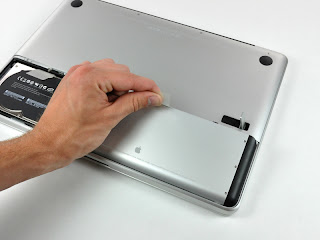

Grab the white plastic tab and pull the battery up and out of the Unibody.

Step 4 — Lower Case

Remove the following eight screws securing the lower case to the chassis:

One 3 mm Phillips screw.

Three 13.5 mm Phillips screws.

Four 3.5 mm Phillips screws.

Step 5

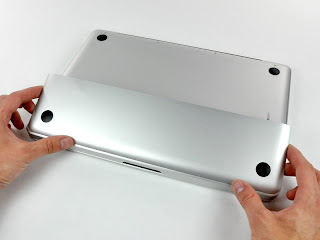

Using both hands, lift and remove the lower case off the upper case.

Step 6 — Mid Wall

Remove the four 10.3 mm Phillips screws securing the mid wall to the upper case.

Step 7

Lift the mid wall out of the upper case.

Step 8 — Fan

Use a spudger to pry the fan connector straight up off the logic board.

Step 9

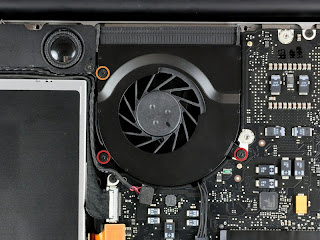

Remove the following three screws securing the fan to the upper case:

Two 5 mm Phillips screws.

One 7 mm Phillips screw.

Step 10

Lift the fan out of the upper case.

Step 11 — Logic Board

In the next few steps, you will disconnect the highlighted cables which connect the logic board to the upper case.

Each connector is different, so the following steps will show you how disconnect each in detail.

Step 12

Remove the single Phillips screw securing the battery cable cover to the upper case.

Remove the battery cable cover from the upper case.

Step 13

Use a spudger to pry the battery level indicator cable connector straight up off the logic board.

Step 14

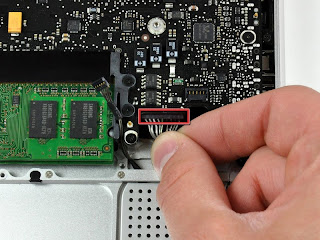

Disconnect the battery cable connector by pulling it straight away from the logic board.

If you cannot grasp the cable with your fingers, a spudger and tweezers may be helpful for removal.

Step 15

Using the tip of a spudger, flip up the keyboard ribbon cable retaining flap.

Pull the keyboard ribbon cable straight out of its socket.

Step 16

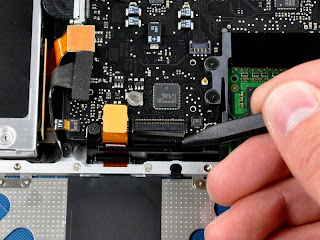

Use the flat end of a spudger to pry the trackpad connector straight up off the logic board.

Step 17

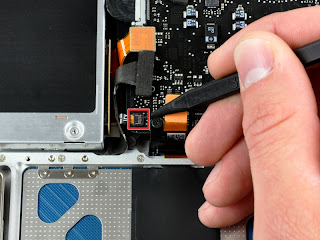

Use the tip of a spudger to flip up the locking lever to release the IR sensor ribbon cable from its socket.

Use the tip of a spudger to pull the IR sensor ribbon cable straight away from the logic board.

Step 18

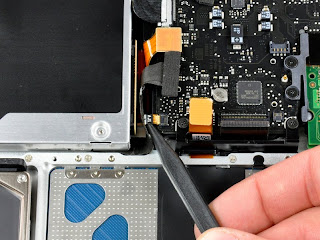

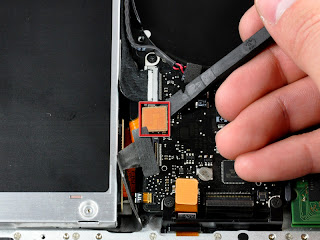

Use the flat end of a spudger to pry the hard drive cable connector straight up off the logic board.

Step 19

Use the flat end of a spudger to pry the optical drive cable connector straight up off the logic board.

Step 20

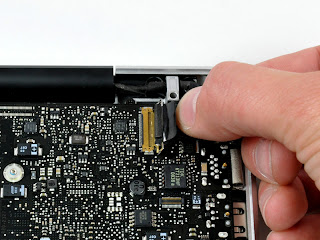

Disconnect the display data cable by pulling the male end straight away from its socket.

Step 21

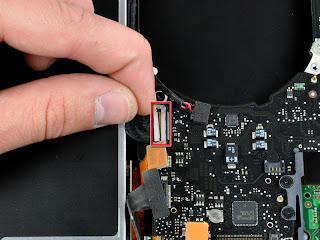

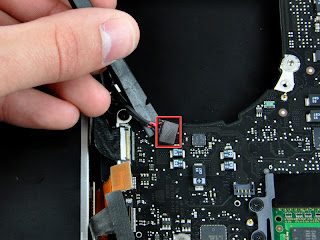

Use the flat end of a spudger to pry the subwoofer cable connector straight up off the logic board.

Step 22

Grab the plastic pull tab secured to the LVDS cable lock and rotate it toward the DC-in side of the computer.

Pull the LVDS connector straight away from its socket.

Step 23

Remove the following two screws securing the LVDS cable bracket to the upper case:

One 7mm Phillips screw.

One 5mm Phillips screw.

Remove the two 7 mm Phillips screws from the DC-in board.

Lift the LVDS cable bracket out of the upper case.

Step 24

If present, remove the two 4mm Phillips screws securing the bottom case clip to the upper case.

Lift the bottom case clip out of the upper case.

Step 25

Remove the two 5mm Phillips screws securing the keyboard flex bracket to the upper case.

Lift the keyboard flex bracket out of the upper case.

Step 26

Use the tip of a spudger to release the microphone from the upper case.

Step 27

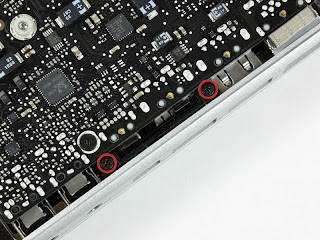

Remove the following five screws securing the logic board to the upper case:

Four 3mm Phillips screws.

One 3.5mm Phillips screw.

Lift the logic board from its left edge and pull it out of the upper case.

Step 28 — DC-In Board

Disconnect the DC-In Board connector from the logic board by pulling it straight away from its socket.

Congratulations!

To reassemble your device, follow these instructions in reverse order
