Sony Ericsson W850i disassembly

Sony Ericsson W850i disassembly

Tools required: Torx 6 screwdriver, Size 0 Phillips screwdriver

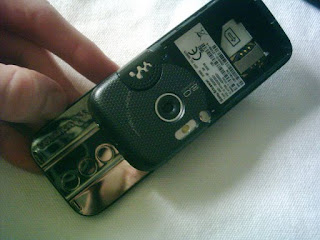

Remove the two screws at the bottom of the phone with the torx 6 screwdriver.

Next push the slider up so you have access to the metal plate, shown below. Run your finger around the edge where the metal plate meets the housing to unclip it.

With the metal plater removed you have access to two more torx 6 screws. Remove these

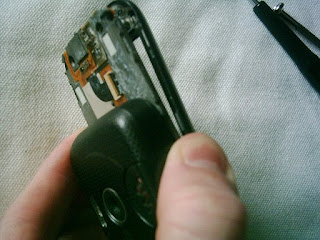

Run your fingernail all the way around the edge of the housing to release it

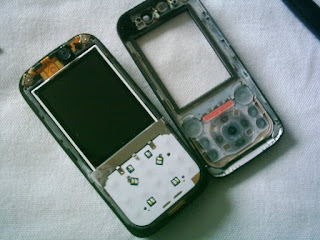

The phone will now be in two parts, as below

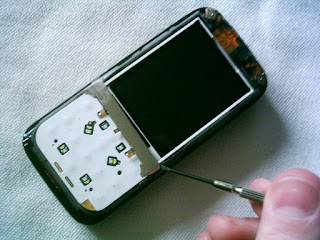

The screen assembly is held on by two clips at each side of the phone, indicated below. Unclip them

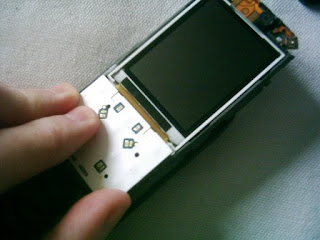

Unclip the board for the keypad by lifting it from the right side. It attaches to two ribbons like a plug and socket. The screen ribbon is also attached to the back of this board: also detach this.

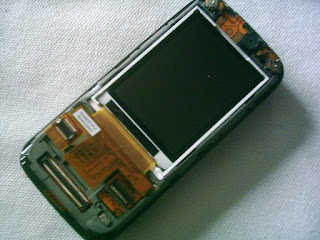

Your phone should now look like the picture below

Remove the LCD and replace with the new one (if applicable). If you are replacing the LCD only you do not need to go any further than this stage. Reverse what you've just done for reassembly

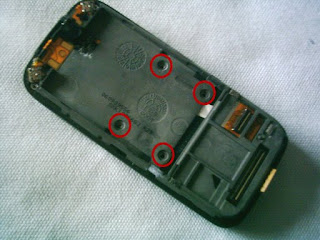

Remove 4 Phillips screws circled below

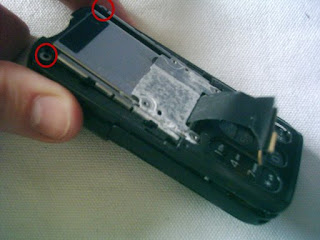

Lift the metal plate to allow access to two more torx screws, circled below. Remove the ribbon which is attached to the back of the metal plate (shown held below) to access to rest of the phone. It is held on with double sided tape or glue and simply peels off

Remove the two torx screws circled below then run your finger along the edge of the housing to separate it from the rest of the phone

Slide the ribbon through the housing so you can remove this part of the housing

The circled ribbon connector attaches like a plug and socket. Pull away or lever it away from the circuit board. Remove the circuit board from the back part of the housing. It is held in by clips the run around the edge of the housing so pull the housing outwards in order to release the circuit board

Reverse the whole procedure for reassembly
