Sony Ericsson W300i disassembly
Tools required: Torx 6 screwdriver

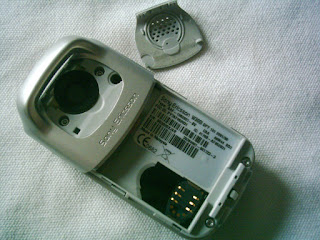

Remove the loud speaker cover. It attaches via two clips at the top of the phone. You'll need to wiggle the cover around to unclip these
You'll now have access to four torx 6 screws. Remove these
Run your fingernail along the edge of the housing to separate the back from from the rest of the phone
Your phone will now be in two parts, as shown below
Remove the plug end of the ribbon cable. Just lift this and it'll unclip
Remove the circuit board
Now unclip the fascia on the front of the phone. Run your fingernail along the edge to release
You'll now have access to four more torx 6 screws. Remove these

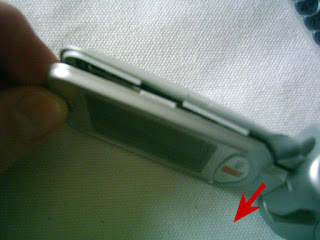

Run your fingernail along the edge of the housing to separate the two parts. This part if held on by two clips near the hinge. Do not pull the housing towards you from the top. Instead try to unclip the housing from the bottom in the direction of the arrow below to stop the clips breaking
You now have access to the LCD screen. Remove the plug end of the ribbon cable, indicated by the arrow below
Replace the old LCD with the new one. Reverse the whole procedure for reassembly
