Sony Ericsson S700i disassembly

Sony Ericsson S700i disassembly

Tools required: Torx 6 screwdriver

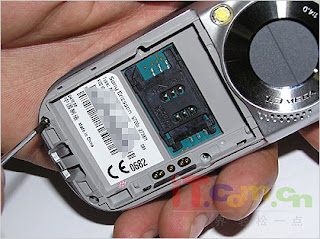

Remove the back cover and battery and you'll see four screws. Remove these

Remove the part shown below and you'll have access to two more screws. Remove these

Run your fingernail along the edge of the housing to separate the battery compartment from the rest of the phone

Your phone should now look like the picture below

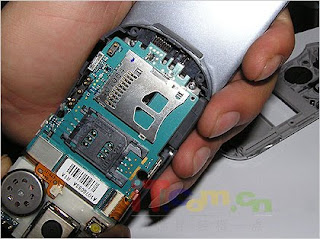

Lift the circuit board from the phone and you'll see two ribbons connected to it. Unplug these

Now remove the screws you see which hold the top and bottom half of the phone together

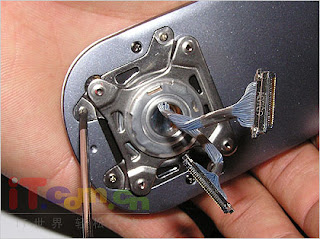

Now remove the screws from the top half of the phone to access the LCD

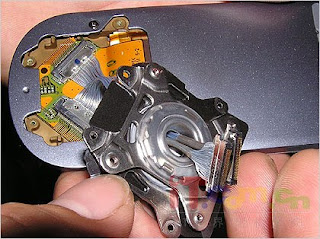

lug the two ribbons you see

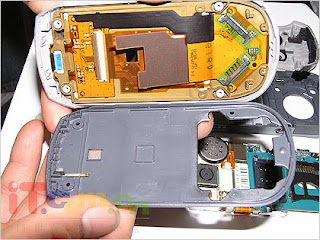

Run your fingernail along the edge of the housing to separate the two parts and you now have access to the LCD

Replace the old screen with new and reverse the whole procedure for reassembly
