Sony Ericsson K770i disassembly

Sony Ericsson K770i disassembly

Tools required: Torx 6 screwdriver, Phillips size 0 screwdriver

Remove the battery, back cover and your memory card. Remove the four torx screws and six cross head screws

You can now remove the front cover by running your fingernail around the join.

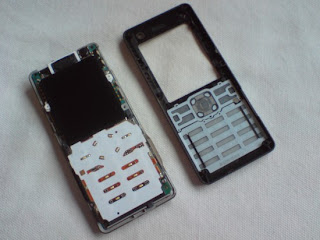

Your phone should now be in two parts, like below. Now remove the two screws you can see.
Lift the keypad part from left to right to remove. It will require a little wiggling about to release. A ribbon (circled), which connects like a plug and socket, will unplug when you do this. Remember to plug this back in when you put the phone back together.

Now lift the LCD screen from left to right. Take note that it is still connected by a ribbon. Simply lift the ribbon connector (circled) up to unplug it

You have now removed the LCD screen and can replace with new. Reverse the whole procedure for reassembly.
