Sony Ericsson K310i disassembly

Sony Ericsson K310i disassembly
Tools required: Torx 6 screwdriver

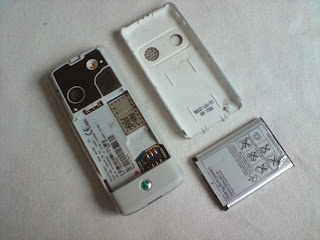

First remove the battery cover, battery and sim.

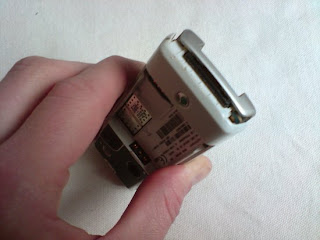

  • Unclip the front cover, starting at the bottom of the phone. It should come away with little force.
  • With the front cover removed your phone will now look like below. Remove the four screws you can see (black screws at the bottom, silver at the top)

    Lift the circuit board, with the LCD screen still attached, away from the body of the phone, like below. Two clips on each side of the phone (circled) hold the metal frame to the circuit board. Release these.

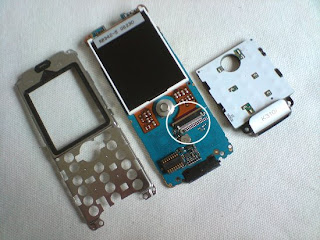

    Your phone should now look like below. You now need to disconnect the ribbon which attaches the LCD screen to the circuit board of the phone. Push the brown part (circled) towards the LCD to release the ribbon. The LCD will now be free.

    You should now have the LCD screen removed. Reverse the procedure for reassembly.
