Nokia 6220 Classic disassembly

Nokia 6220 Classic disassembly

Tools required: Plastic shim such as a credit card or guitar plectrum

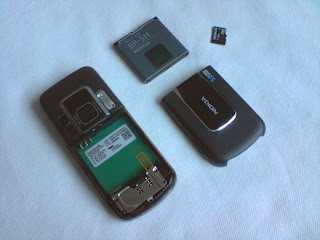

First remove the battery cover, battery, sim and memory card.

You now need to remove the front cover. It's held on with clips around edge. Run something like a credit card all the way around the join of the front cover and it'll unclip.

You should now have the cover removed, like below.

Next release the keypad. It's held on by four clips: one on each side and two at the bottom of the phone.

Lift the keypad up (it'll still be attached at the bottom) and you'll reveal a ribbon connector coming from the LCD (circled). This attaches like a plug and socket. Simply lift it up to unplug it. Now slide your credit card under the LCD to release it (it's stuck down with a tacky glue at the bottom).

You should now have the LCD screen removed. Reverse the whole procedure for reassembly.
