Nokia 6110 Navigator disassembly

Nokia 6110 Navigator disassembly
Tools required: Torx 6 screwdriver, plastic tool such as a credit card or guitar plectrum

First remove the battery cover, battery, sim and memory card.

Open the slide then peel the GPS sticker off to reveal two screws. Remove these screws.

Starting near the top of the phone, use run something like the edge of a credit card around the join of the front cover to release it. A little force is required.

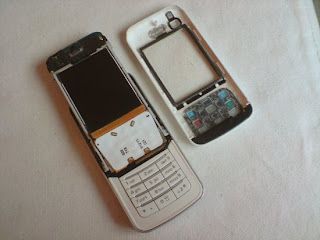

  • Your phone should now look like below.

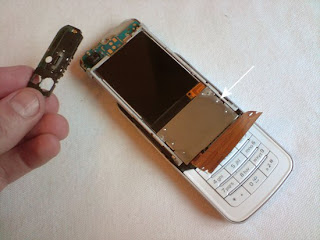

  • Now lift away the black part, as shown below and peel back the keypad part. Lever off the metal cover from the point indicated by the arrow.

    A connector attaches the LCD screen to the circuit board of the phone. This attaches like a plug and socket. Simply lift the ribbon connector up, away from the phone to detach it.

    The LCD should now be loose and can be removed.

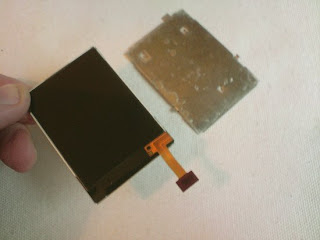

    Peel the frame away from the back of the LCD screen, as pictured below. Reverse the whole procedure for reassembly.
