Installing iPod 1st Generation Front Panel

Installing iPod 1st Generation Front Panel

The plastic front half of your iPod case.

Tools used in this guide : T6 Torx Screwdriver , iPod Opening Tools
Parts relevant to this guide : iPod 1G Front Panel

Step 1 — Rear Panel

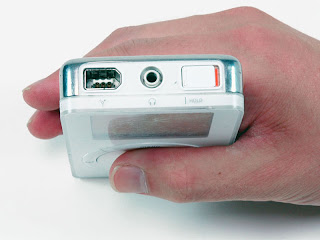

Before opening your iPod, ensure that the hold switch is in the locked position.

Step 2
Opening the iPod can be challenging. Don't get discouraged if it takes you a few tries before the iPod is opened.

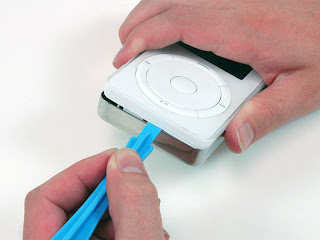

Insert a plastic iPod opening tool in the seam between the white plastic front and metal back of the iPod. Once you've inserted the tool, run it along the seam to free the five tabs holding the iPod together.

Step 3

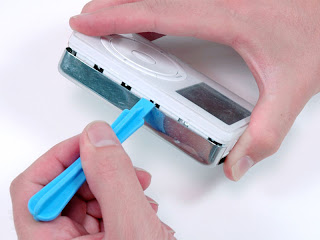

Continue to run the opening tool along the side of the case until all five tabs have been released.

Step 4
Work around the corner of the iPod and release the two tabs holding the iPod together near the dock connector.

Step 5
Free the five tabs holding the iPod together on the other side. You may be able to free the tabs by gently wiggling the front panel of the iPod.
Lift the rear panel away from the iPod.

Step 6 — Battery
Lift the battery up from the adhesive holding it to the iPod.
Lay the battery next to the iPod (it is still connected to the logic board).

Step 7

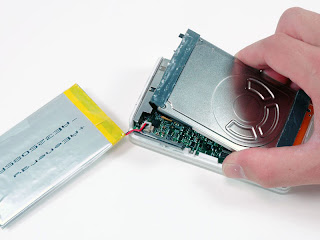

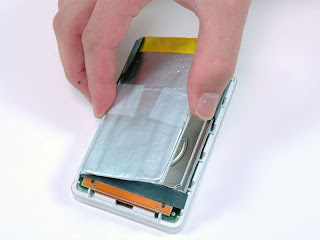

Lift up the end of the hard drive near the Firewire port to allow easy access to the battery connector.

Step 8

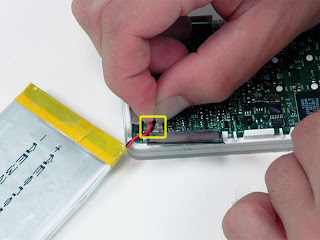

Carefully disconnect the white battery connector from the logic board. Be sure to pull only on the connector itself and not on the cables.

Step 9

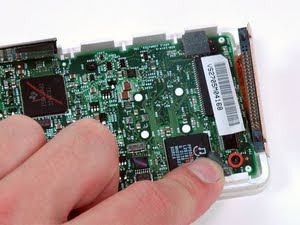

Peel up the gray rubber bumper near the hard drive ribbon to reveal the T6 Torx screw beneath.
Remove the newly revealed T6 Torx screw.

Step 10

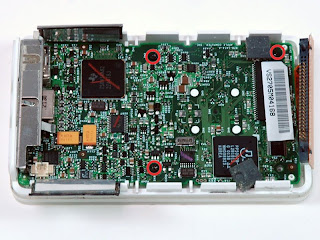

Remove the 3 remaining T6 Torx screws from the logic board.

Step 11

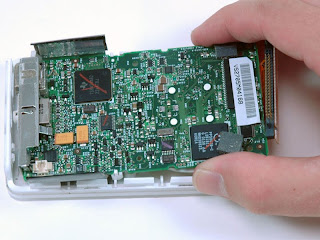

Slide the logic board away from the port end of the casing and lift it out of the iPod.

Step 12

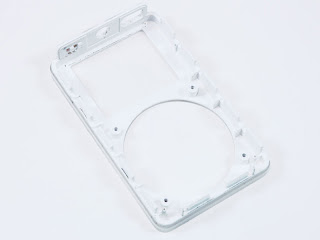

Front panel remains.

To reassemble your device, follow these instructions in reverse order
