Sony Ericsson M600i disassembly

Sony Ericsson M600i disassembly

Tools required: Torx 6 screwdriver, size 0 Phillips screwdriver, plastic shim (e.g. credit card or plectrum)

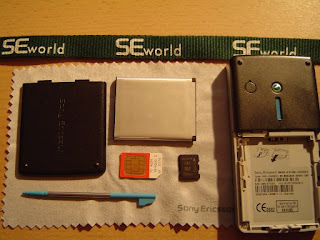

Remove the battery, sim card, memory card and stylus

Remove the cross head screws you see

With a plastic shim lever the antenna cover off. It is important that the cover is lifted upward. Gentle force is required here. Note from the next picture where the clips attach

The aerial cover is now removed. Remove the two torx screws you see

To remove the front cover run your fingernail along the edge of the housing where the main body of the phone and front cover meet. This will release the clips which hold the front cover in place

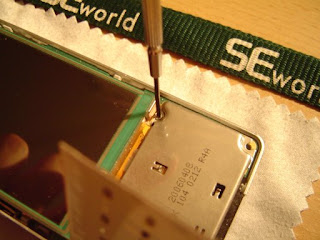

Under the keypad is a metal plate, which is fastened by two screws. Unscrew these and remove the metal plate

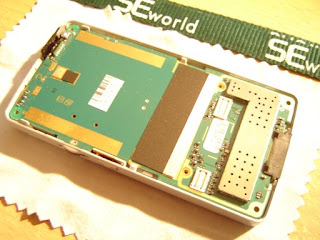

The screen can now be removed and the phone will look like the picture below. The screen is attached to the circuit board by the ribbon which connects like a plug and socket. Simply lift the ribbon and it'll pop out of the socket

Reverse the whole procedure for reassembly
