Nokia N95 disassembly

Nokia N95 disassembly

Tools required: Torx 5 screwdriver

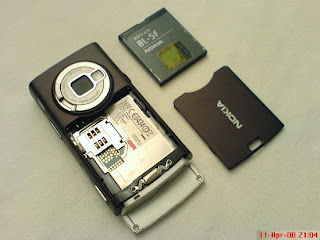

First remove the battery cover, battery and memory card. Move the slider down and remove the two screws you see.

Now move the slider up and remove the two screws at the top of the phone.

Run your fingernail along the edge of the join of the front cover to unclip it.

You should now have the front cover removed. The keypad should be loose as well.

Flip the keypad part back to access the ribbon which connects the LCD to the phone.

To remove the ribbon, flip back the metal hinge and then simply pull the screen back and the ribbon will be released.

Pull the LCD in the direction shown.

ur phone should look like below and you can replace the LCD. Reverse the whole procedure for reassembly
