Nokia E90 disassembly

Nokia E90 disassembly

Tools required: Torx 5 screwdriver

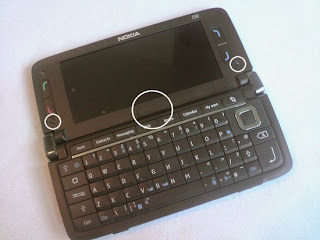

First remove the sticker in the large circle to reveal a screw. Then remove all three screws you can see. The front cover will now be loose and can be removed.

With the front cover removed you have access to the outer LCD screen. This is attached to the phone by a connector, which is circled. This connector attaches like a plug and socket. Simply lift it up, away from the phone, to disconnect it. Remove the keypad, which will be loose.

Your phone will now look like below. The circled connector is attached like the last one. Disconnect this.

Remove the two screws, circled.

Now lift the metal plate you have just removed the screws from to access the LCD screen. The LCD screen will be loose and can be lifted out.

You should now have the inner LCD screen removed. Reverse the whole procedure for reassembly.
