Nokia E50 disassembly

Nokia E50 disassembly

Tools required: Torx 6 screwdriver

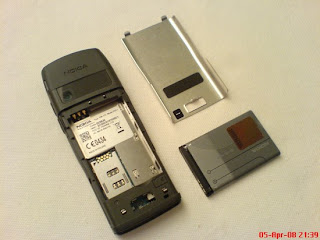

First remove the battery cover & battery.

Starting at the top, run your fingernail around the join of the front cover and it'll release.

Your phone should now look like below.

Two clips on either side of the phone hold the PCB & LCD screen etc in place. Use a credit card to release the clips

With the two parts separated your phone will look like the picture below.

A metal frame holds the LCD in place. Unclip the metal frame.

Your phone should now look like below and you have access to the LCD. It is attached to the PCB by a ribbon which attaches like a plug and socket. Simply lift it up to unplug it.

You have now removed the LCD screen. Reverse the whole procedure for reassembly.
