Nokia 6681 disassembly

Nokia 6681 disassembly

Tools required: Torx 6 screwdriver

First remove the battery cover & battery

Now remove the aerial cover/camera lens. Two clips hold this in place so lift these back first then run something like a credit card around the join to remove the aerial cover.

Your phone will now look like below.

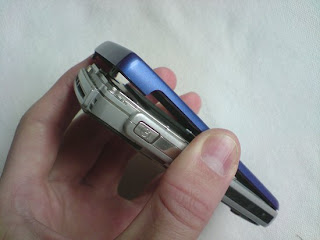

You can now remove the front cover. The cover is held on by a couple of clips at the top of the phone so lift the cover away, starting at the top.

You should now have the front cover removed, as shown below. Remove the five screws which surround the LCD screen and you can then remove the metal frame.

You should now have removed the metal frame, like below.

The LCD is attached by a ribbon, indicated by the screwdriver in the image below. The ribbon attaches like a plug and socket. Simply lift to ribbon up to unplug it.

You have now removed the LCD screen. Reverse the whole procedure for reassembly.

You have now removed the LCD screen. Reverse the whole procedure for reassembly.
