Nokia 6310i disassembly

Nokia 6310i disassembly

Tools required: Torx 6 screwdriver

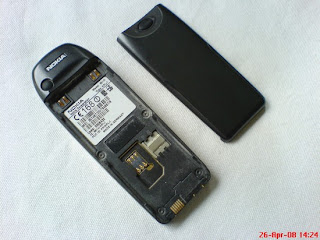

First remove the battery and sim card. Next remove the four screws you see

Pull the front and back parts of the phone away from each other, starting at the bottom of the phone.

You should now have the phone in two parts, like below.

Remove the screw which holds the aerial in place and your phone will now look like below. You can now lift the circuit board away from the front cover

Turn the circuit board over. The LCD board is held to the circuit board by four clips. Unclip these to remove the LCD board.

You should now have the LCD removed and your phone should look like the picture below. You can now replace the LCD. Reverse the whole procedure for reassembly.
