Nokia 3230 disassembly

Nokia 3230 disassembly
Tools required: plastic shim such as a guitar plectrum and T6 screwdriver

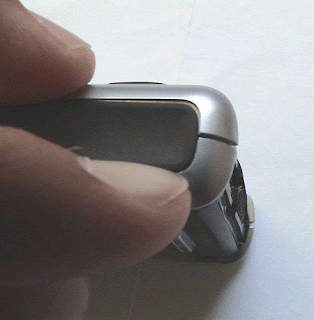

  • Turn your phone over so the camera is facing you and remove the battery cover and battery. Next slip your plastic shim or fingernail under the gap between the camera and the top piece (where the arrows are, pictured below). Be careful and pry the top off slowly.

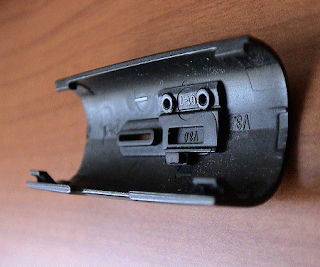

    • This part is held on by a recess in the plastic and not glued (as pictured below)

    Next remove the 2 screws below the battery compartment

    Then remove the two screws at the top

    Use the plastic shim or fingernail to separate the front cover from the rest of the phone. You can now access the LCD screen

    Remove the 4 screws holding the screen in place. Remove the LCD and replace with new. Reverse the procedure for disassembly and it's finished.
