Nokia 3110 Classic disassembly

Nokia 3110 Classic disassembly
Tools required: Torx 6 screwdriver

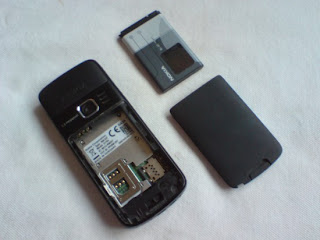

Remove the battery, back cover and your memory card.

Now remove the front cover by running your fingernail around the join.

Your phone should now be in two parts, like below. Remove the six screws you can see.

Now lift the circuit board from the chassis of the phone.

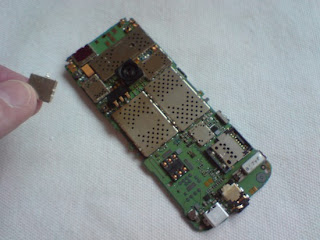

Turn the circuit board over. You now need to remove the small metal box, indicated by the screwdriver, which covers the connector from the LCD screen. Pry it away with your fingernail.

You should now have this metal part removed allowing access to the ribbon connector.

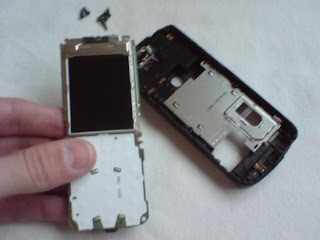

Turn the circuit board over again and lift the metal frame, which holds the LCD screen, away from the phone, allowing you to unplug the connector. It attaches like a plug and socket. Simply lift it upwards to unplug it.

You should now have the metal frame and LCD screen removed.

Now lever apart the edges of the metal frame to release the LCD. You can now replace the LCD screen with new. Reverse the whole procedure for reassembly.
