Installing MacBook Core Duo RAM

Installing MacBook Core Duo RAM
Accessing the RAM in this computer is straightforward and requires minimal disassembly. Two RAM slots allow up to 2 GB of PC2-5300 RAM.

Tools used in this guide : Coin , Phillips #00 Screwdriver
Parts relevant to this guide : PC2-5300 1 GB RAM Chip , PC2-5300 512 MB RAM Chip

Step 1 — Battery

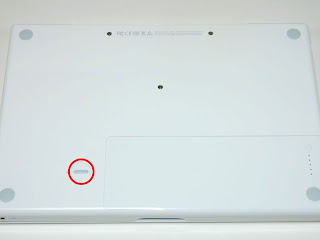

Use a coin to rotate the battery-locking screw 90 degrees clockwise.

Step 2
Lift the battery out of the computer.

Step 3 — Memory Cover

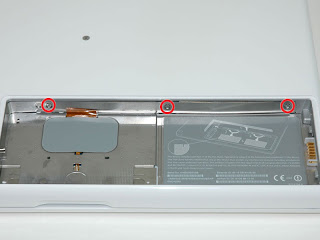

Remove the three evenly-spaced Phillips screws from along the rear wall of the battery compartment.
The screws are captive to the metal memory cover.

Step 4
Lift up on L-shaped memory cover, slide it to the right, and lift it out of the computer.

Step 5 — RAM
Pull back on the metal lever and slide the RAM chip out from its compartment.
Unlike the iBook line, the MacBook has two RAM slots, which allows for up to 2 GBs of memory.

Congratulations!
To reassemble your device, follow these instructions in reverse order.
