Motorola V6 MAXX disassembly

Motorola V6 MAXX disassembly
Tools required: Torx 5 screwdriver, plastic tool such as a guitar plectrum or credit card.

Open the flip. You first need to remove the lens which covers the large LCD screen (see next stage).

Slide your plastic tool under the lens. It'll be stuck down lightly with double sided tape.

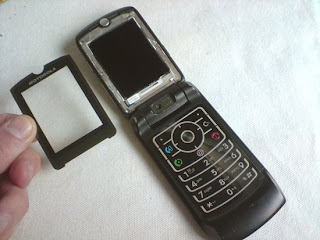

You should now have the lens removed. Now remove the six screws you have access to.

Close the flip and lift the front cover from left to right. It'll still be attached by a ribbon (circled) so be careful. To detach the ribbon, lift up the white latch (circled) and then pull the ribbon away from the phone and it'll slide out.

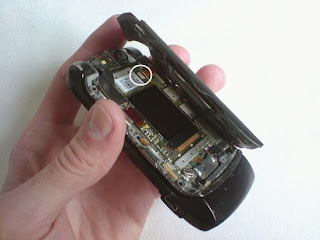

Your phone should now look like below. Another ribbon connector (circled) needs to be disconnected. This attaches like a plug and socket. Simply lever it up, away from the phone, to unplug it.
Next remove the two screws circled at the top of the picture. Now lever out the vibrating motor and speaker, circled at the bottom of the picture.

You can now lift the LCD away from the phone, as shown below. Reverse the whole procedure for reassembly.
